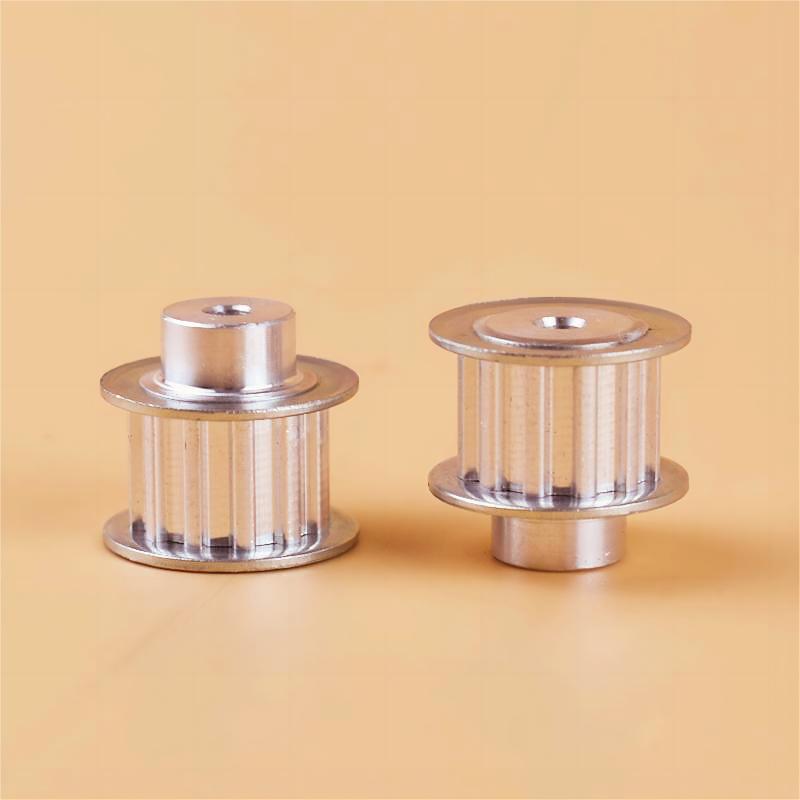

Custom Timing Belt Pulleys
Description
Reviews
Precision-Crafted Custom Timing Belt Pulleys for Industrial Excellence
As a leading manufacturer and supplier, CHUANQI GEARS specializes in custom timing belt pulleys tailored to your exact specifications. Since our establishment, we have been committed to delivering high-quality pulleys made from premium materials such as aluminum, C45 steel, cast iron, brass, POM, and stainless steel, ensuring durability and performance across diverse applications.
Technical Specifications
| Profile Types | MXL, XL, L, H, XH, XXH, T2.5, T5, T10, T20, AT5, AT10, AT20, HTD3M, HTD5M, HTD8M, HTD14M, GT2, GT3, GT5, SM2, SM3, SM5 |
|---|---|
| Material Options | Aluminum, C45 Steel, Cast Iron, Brass, POM, Stainless Steel |
| Surface Treatments | Oxidation (various colors for aluminum), Blackening, Galvanizing, Heat Treatment (for steel) |
| Number of Teeth | 3 to 300 Teeth |
| Diameter Range | 5mm to 1 meter |
Custom Synchronous Pulley Parameters
To design your custom timing belt pulley, we require the following parameters:
✔ Material: C45 Steel, Aluminum, Stainless Steel
✔ Number of Teeth and Profile Model
✔ Pulley Shape: With or Without Retaining Ring
Detailed parameters include:
1. Retaining Ring Diameter
2. Tooth Surface Width
3. Threaded Hole Parameters
4. Tooth Thickness
5. Total Thickness
6. Inner Hole Diameter
7. Keyway Size
8. Number of Teeth and Tooth Shape
9. Step Diameter
10. Material
End-to-End Customization Process
Design Submission: Provide your drawings or samples for precise customization
Rapid Response: CHUANQI GEARS ensures the fastest service to meet your needs
Production: High-capacity manufacturing tailored to your specifications
Competitive Advantages
⚙ Versatility: Wide range of profiles and materials to suit any application
⚙ Precision: Customizable from 3 to 300 teeth with diameters up to 1 meter
⚙ Durability: Surface treatments enhance longevity and performance
