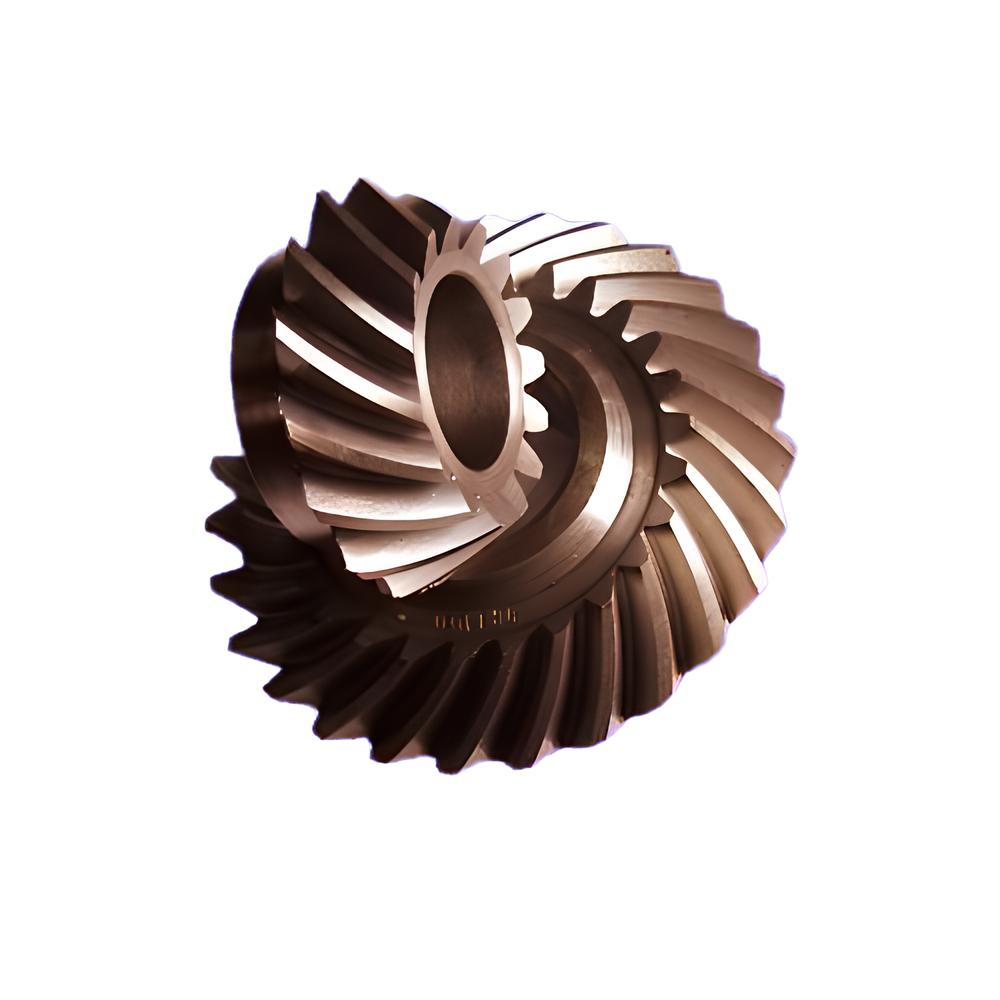

Custom Bevel Gears
Description
Reviews
Our custom bevel gears are tailored for high-efficiency right-angle drives, offering bespoke solutions to meet your specific needs. Whether you require precision-engineered gears for automotive, aerospace, or industrial machinery, we deliver top-quality products with customizable designs to enhance performance and durability.
Technical Specifications
| Parameter | Details |
|---|---|
| Module Range | 0.5 to 12 |
| Maximum Diameter | 410mm |
| Shaft Angle | 10° to 170° |
| Gear Quality | DIN 3965 Grade 1 (Ground), DIN 3065 Grade 7 (Milled) |
| Materials | Steel, Stainless Steel, Aluminum |
Applications of Custom Bevel Gears
Our gears are trusted across industries for their reliability and precision:
- Automotive: Differential systems for improved torque transmission.
- Aerospace: Power transmission in flight control systems.
- Industrial Machinery: Robotics and heavy-duty equipment.
Example: "Our gears increased transmission efficiency by 20% in a leading automotive manufacturer’s differential system."
Our Manufacturing Process
We utilize advanced Gleason systems to produce spiral bevel gears, combined with automated inspection equipment for 100% quality assurance. Every gear undergoes rigorous testing to meet international standards.
_1741327089_WNo_802d491.webp)
Quality Assurance
Certified with ISO 9001, we adhere to AGMA Class 9 standards and conduct full tooth profile inspections to ensure precision and durability.
Why Choose CQ Gears?
With over 20 years of experience, our team of mechanical engineers (including PhD holders) has delivered custom gear solutions to 500+ global clients. We are proud members of AGMA and trusted partners of top-tier manufacturers.
Get Your Custom Bevel Gears Today
Ready to start your project?
Product Gallery
FAQ
Q: How long does it take to get custom bevel gear samples?
Q: Can you produce bevel gears with non-standard pressure angles?
Q: How do you ensure the tolerance of custom bevel gears?
A: All gears undergo three-stage quality control:
- CMM measurement of dimensional accuracy (AGMA 2000-C95 Class 8)
- Gear fit test with master gear
-
Surface roughness test (Ra≤0.8μm)
A certified inspection report is provided for each batch of goods.
