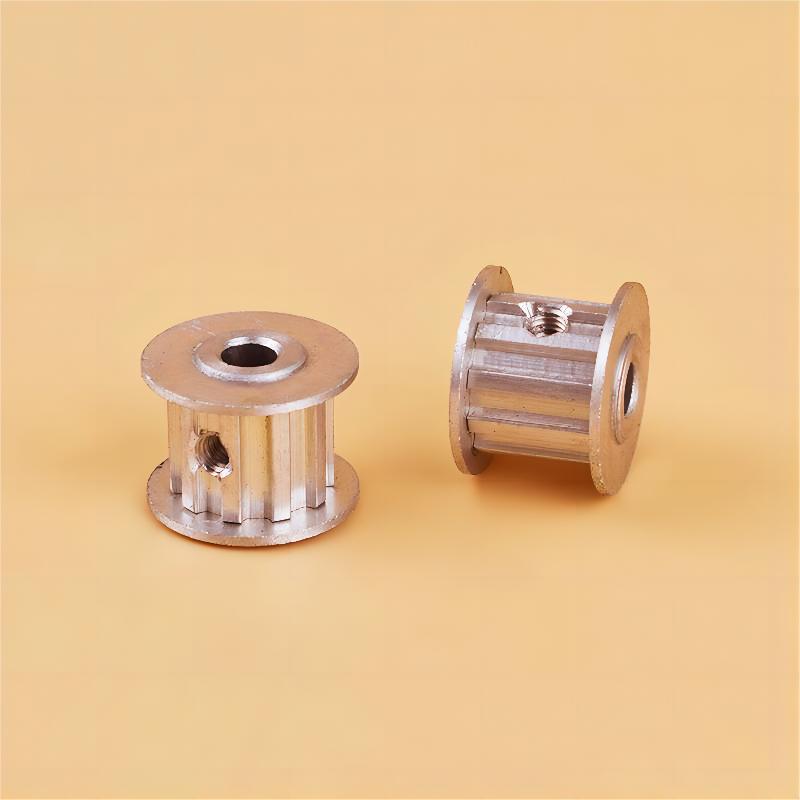

AT5 AT10 Timing belt pulleys
Description
Reviews
Introduction
CHUANQI GEARS is a professional manufacturer specializing in the production of AT5 and AT10 Timing belt pulleys. Our specially designed tools ensure accurate tooth profiles, resulting in high transmission efficiency when used in conjunction with timing belts.
Production Capacity
The AT series Timing belt pulleys are similar to the T series, but with differences in tooth profiles. AT series Timing belt pulleys are designed for high load, high wear resistance, and fatigue resistance. They are widely used in durable and energy-efficient power transmission, conveying drives, linear drives, and low-power transmissions.
The difference lies in the tooth profile; while T5 and T10 Timing belt pulleys have contact areas on both sides of the teeth, the AT series Timing belt pulleys have a larger contact area due to the different tooth profile. The angle of the T series is 40°, while the angle of the AT series is 50°. Therefore, in designs with similar tooth counts, module sizes, and widths, under spatial constraints, AT5 and AT10 Timing belt pulleys provide greater transmission force. Consequently, they are preferred in designs with higher strength and load requirements.
Product Data
https://www.pulleygears.com/uploads/202410/AT5 Timing belt pulleys_1727748001_WNo_d.pdf
https://www.pulleygears.com/uploads/202410/AT10 Timing belt pulleys_1727748027_WNo_d.pdf
Choose Us
We can utilize different materials for production, and our customization efficiency is high. If you have any requirements, please feel free to contact our customer service.
